CTC Vibration Analysis Hardware CTC Vibration Analysis Hardware

NECI is the Master Distributor for CTC in New England

As the exclusive Master Distributor for Connection Technology Center (CTC) in New England, NECI offers the complete line of CTC Vibration Monitoring Hardware. NECI has a team of Reliability Engineers that can help with your hardware requirements. From selecting the proper sensor, cable, junction box or mounting hardware, CTC has a solution for almost any project. With a strong local offering throughout New England, NECI can assist in system design, professional installation, startup/commissioning and vibration data analysis.

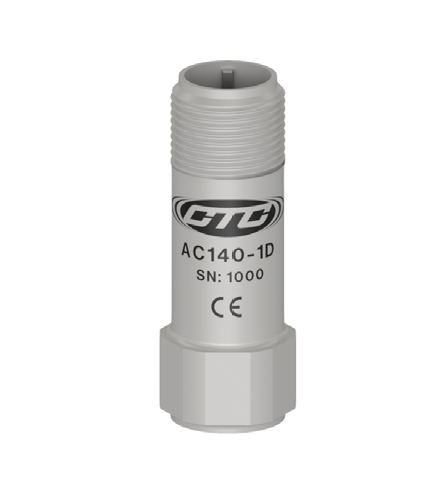

Multipurpose Accelerometer, Top Exit

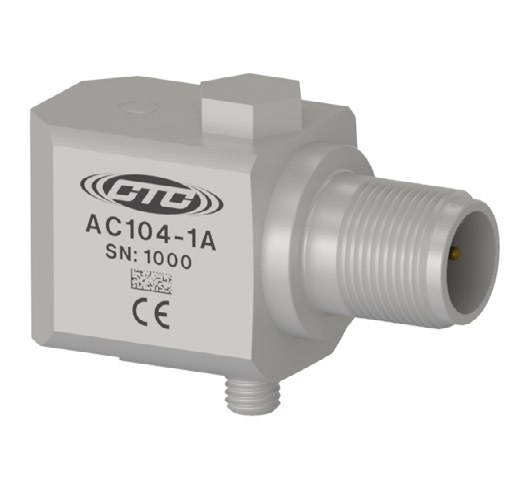

Multipurpose Accelerometer, Side Exit

Standard Size
Standard Size
Compact Size
Compact Size

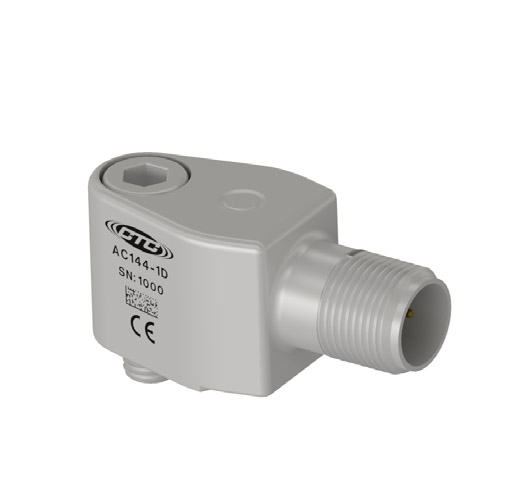

Mini Size
Mini Size

Multipurpose Accelerometer, Integral Cable Options

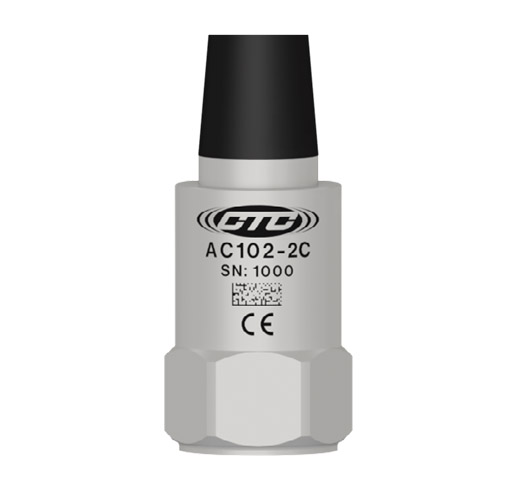

Standard Integral
Standard Integral

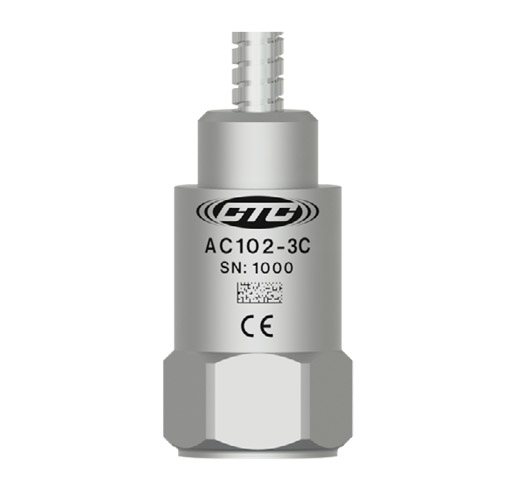

Armored Integral
Armored Integral

High-Temperature Accelerometers

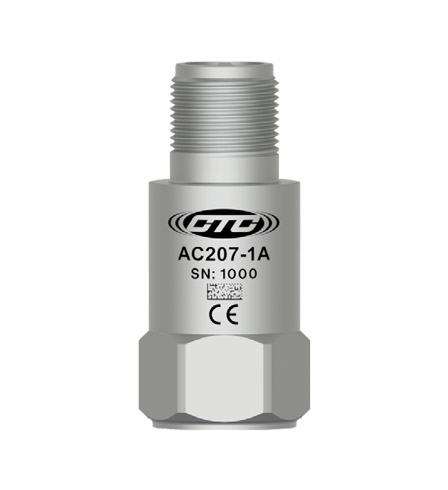

AC207
AC207
100 mV/g
Max Temp: 325° F (162° C)
Data Sheet

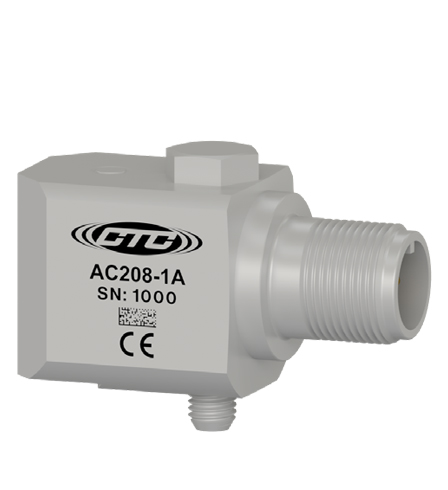

AC208
AC208
100 mV/g
Max Temp: 325° F (162° C)
Data Sheet

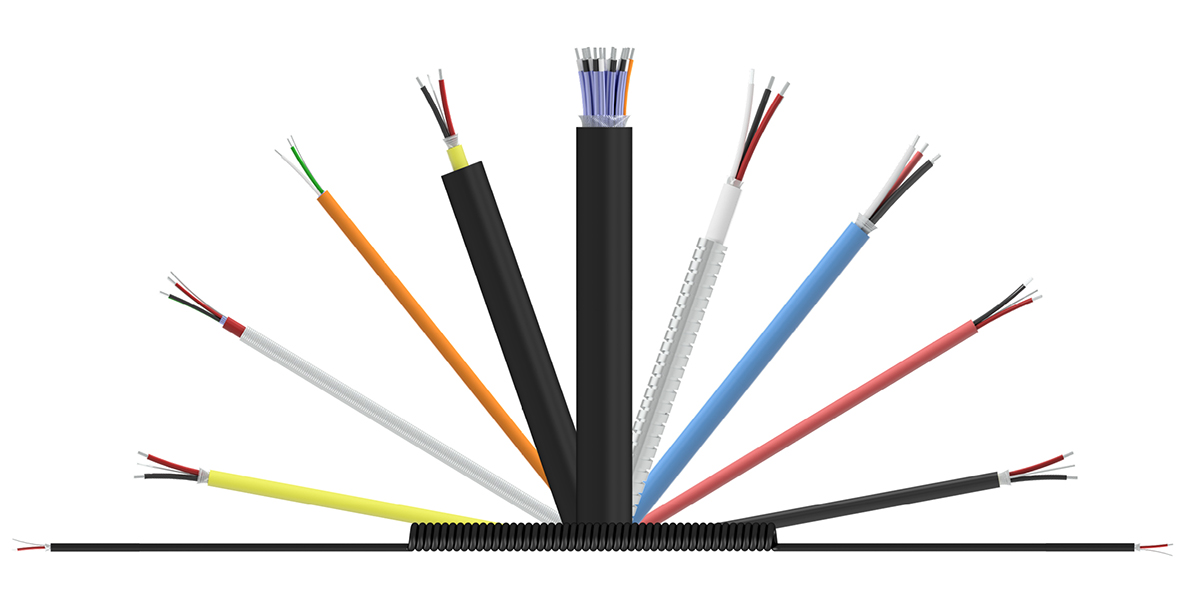

NECI Offers a Variety of CTC Cable Options for All Application and Environmental Criteria

Custom Cable Wizard

Jacket Types

  • Fluorinated ethylene propylene (FEP)
  • Polyurethane
  • Lightweight Polyurethane
  • PVC
  • Thermoplastic Elastomer (TPE)
  • Low Smoke Zero Halogen

Armor Options

  • Stainless Steel Braided Sheathing
  • Stainless Steel Armor
  • Hydraulic Hose Armor

Conductor Options

  • 2 Conductor
  • 3 Conductor
  • 4 Conductor
  • 6 Conductor
  • 8 Pair Multi Conductor
  • 12 Pair Multi Conductor
  • 16 Pair Multi Conductor
  • 12 Triad Multi Conductor

NECI Offers a Variety of CTC Standard and Specialty Connectors for Every Possible Application

CTC sensor connectors support temperatures ranging from -58 ° F to 325 ° F (-58 °C to 163 °C). A wide selection of connectors supporting IP (Ingress Protection) ranging from IP66 to IP68 is available.

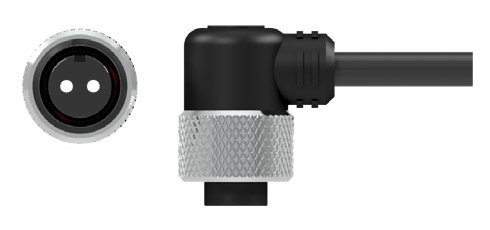

A Series: 2 or 3 Socket MIL Style (C-5015) Compatible Connector

Connector options
  • Standard
  • Right angle
  • Hydraulic hose
Material options
  • Polycarbonate
  • Polyurethane
  • Nylon
  • Polyphenylene sulfide (PPS)

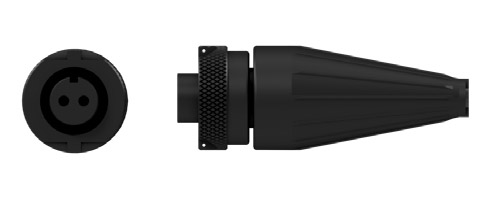

D Series: 2 or 3 Socket MIL Style (C-5015) Compatible Connector

Connector options
  • Standard
  • Grounded to sensor case
  • Right angle
  • Backshell
  • Backshell for Class 1 Division 2
  • Molded strain relief
  • Bending strain relief
Material options
  • Polyurethane

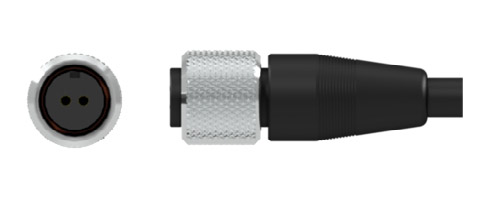

J Series: 2 or 4 Socket mini-MIL Connector

Connector options
  • Standard
  • Strain relief
  • Class 1 Division 2 rated
Material options
  • Polycarbonate
  • Nylon
  • Polyurethane

M Series: 5 Socket M12 Molded Connector

Connector options
  • Available in 2, 3, 4, and 5 live pin configurations
Material options
  • Nylon
  • Polycarbonate
  • Polyurethane

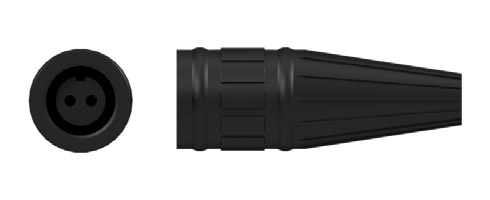

V Series: Viton Boot

Connector options
  • Available in 2 or 3 live pin configurations
Material options
  • Viton seal with
    • Nylon insert option
    • PPS insert option

Junction Boxes

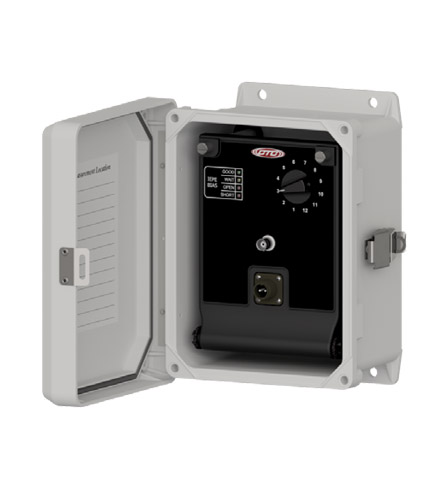

JBX10
JBX10
Allows for up to 12 channels for single axis, biaxial, or triaxial outputs Data Sheet

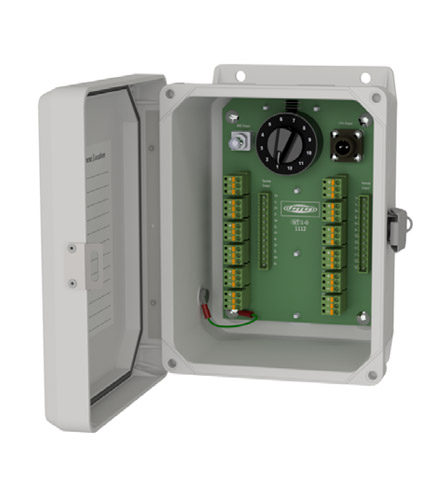

SB102/SB202
SB102/SB202
Fiberglass or stainless steel switch boxes available in 4, 6, 8, 10, or 12 channels
Data Sheet
SB142/SB242
SB142/SB242
Fiberglass or stainless steel switch boxes for dual output available in 4, 6, or 8 channels
Data Sheet

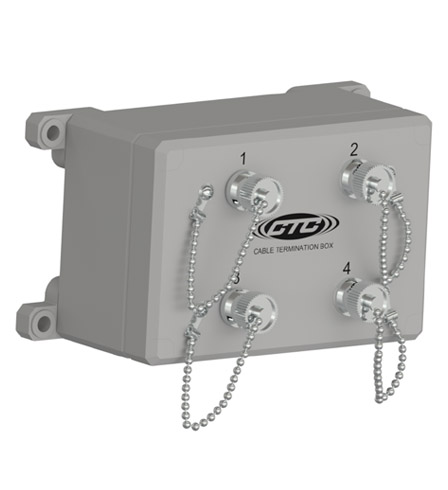

CT101
CT101
Cable termination boxes for up to 4 channels
Data Sheet

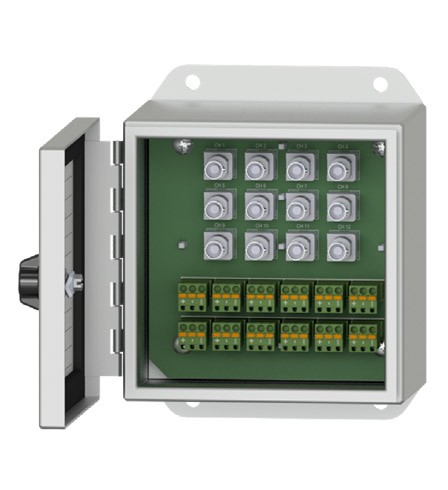

MX102/MX202
MX102/MX202
Fiberglass or stainless steel MAXX boxes available in 1-12 channels
Data Sheet

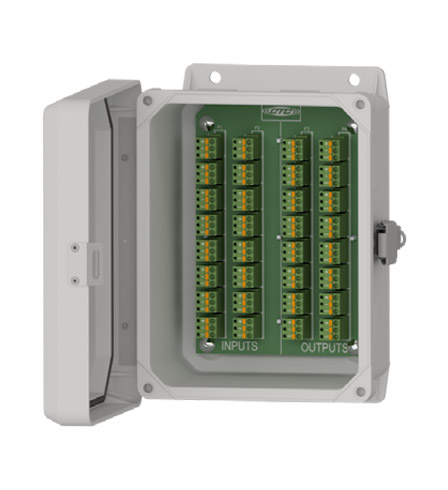

CR102/CR202
CR102/CR202
Fiberglass or stainless steel cable reduction boxes for 8, 12, and 16 channels
-58 °F to 180 °F
(-50 °C to 82 °C)
Data Sheet

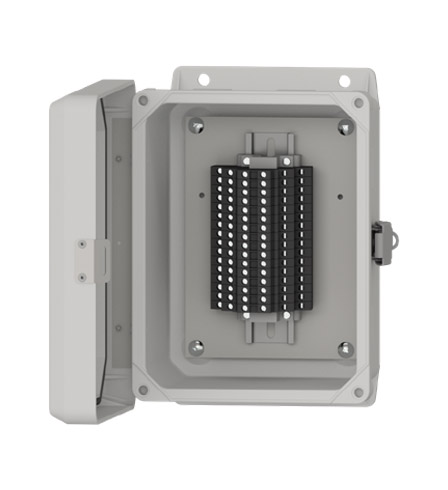

CRHT102/CRHT202
CRHT102/CRHT202
Fiberglass or stainless steel high temperature
(-40 °F to 212 °F/
-40 °C to 100 °C)
cable reduction boxes for 12 and 16 channels
Data Sheet

Mounting Hardware

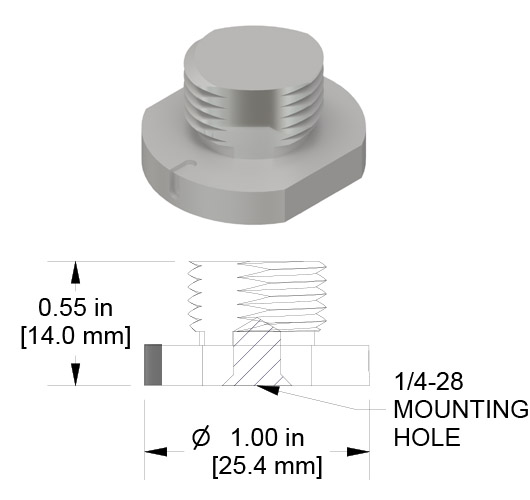

MH107-1B
MH107-1B
Data Sheet

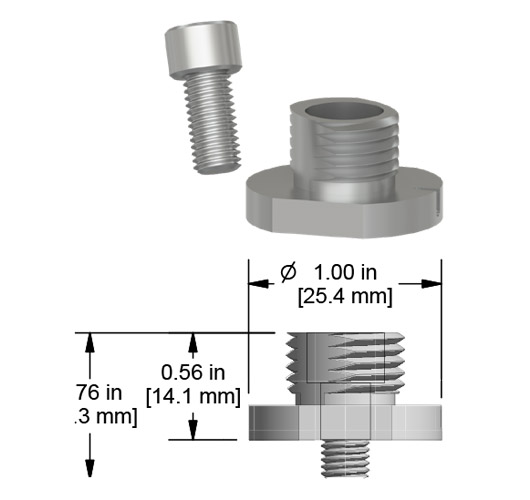

MH107-2B
MH107-2B
Data Sheet

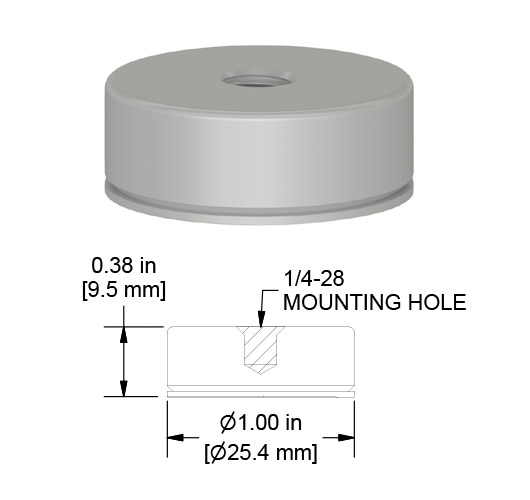

MH130-1A
MH130-1A
Data Sheet

Motor Fin Probe Pads

Take measurements from hard-to-reach places.

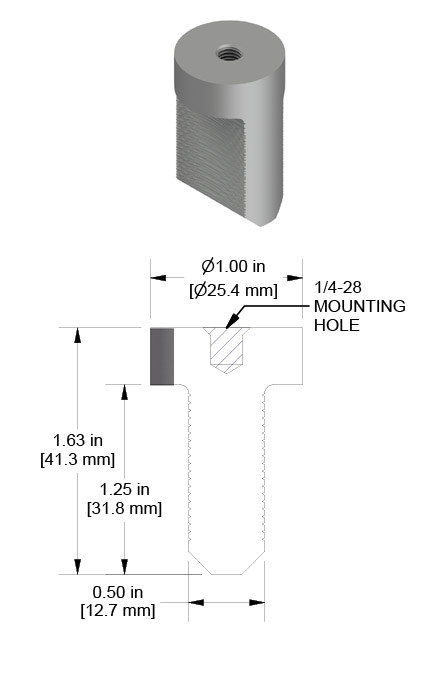

MH118-1A
MH118-1A
Data Sheet

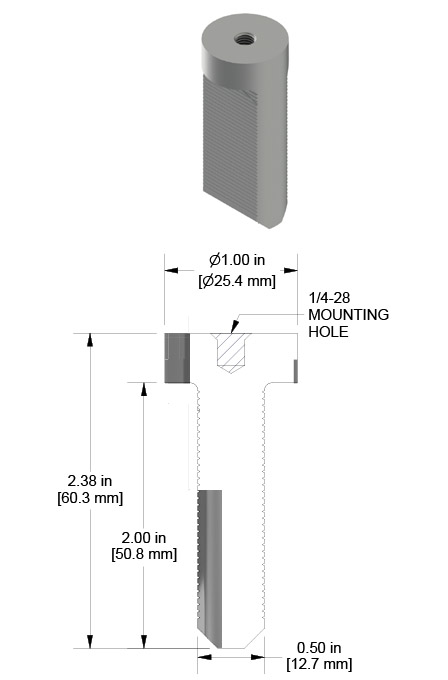

MH118-2A
MH118-2A
Data Sheet

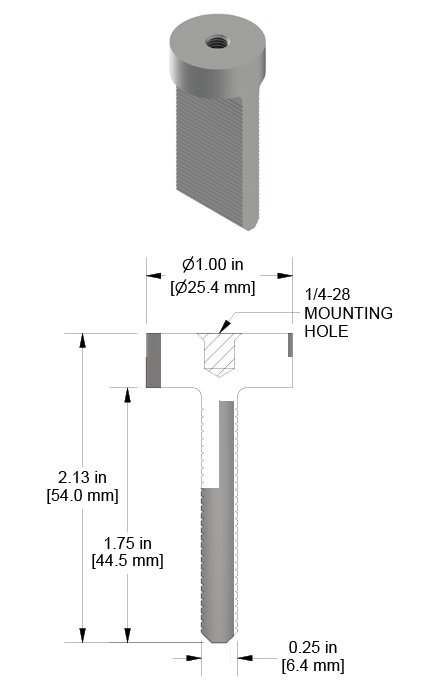

MH118-3A
MH118-3A
Data Sheet

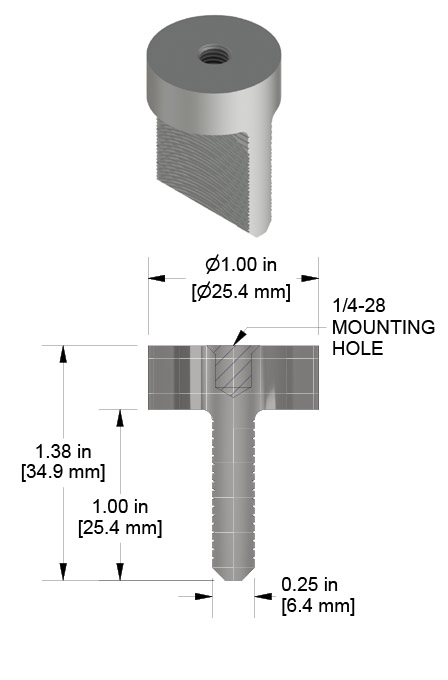

MH118-4A
MH118-4A
Data Sheet

Our fin mount probes are perfect for narrow measurement points in motors, turbines, and other machinery. Fin mounts can be used for portable route measurements or permanently mounted accelerometers.

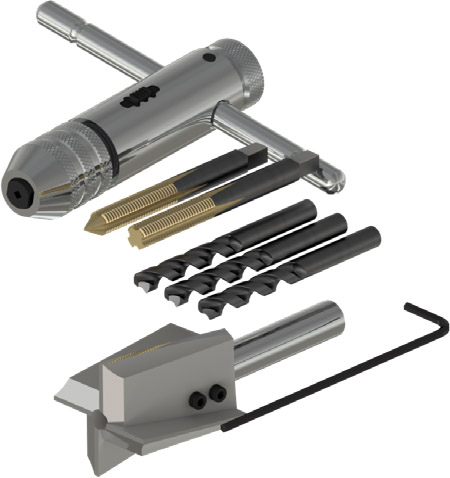

Accelerometer Installation Tool Kit

MH117 Series
MH117 Series
Spot face and pilot hole drill in one operation. Option for taps and ratcheting tap handle included.
Data Sheet
High speed steel end mill tool kits
Available thread sizes
  • 1/4-28
  • 10-32
  • M5x.8
  • M6x1
  • M8x1.25
Available end mill diameters
  • 5⁄8 in., 1 in., 11⁄4 in.
  • 5⁄8 in., 1 in.
  • 5⁄8 in.
  • 1 in., 11⁄4 in.
  • 11⁄4 in.

Carbide tipped end mill tool kits
Available thread sizes
  • 1/4-28
  • M8x1.25
Available end mill diameters
  • 5/8 in., 1 in., 1 1/4 in.
  • 1 1/4 in


4-20mA Loop Power Sensors

LP200 Series sensors for velocity come in top or side exit connector, integral cable, and armored integral cable options.

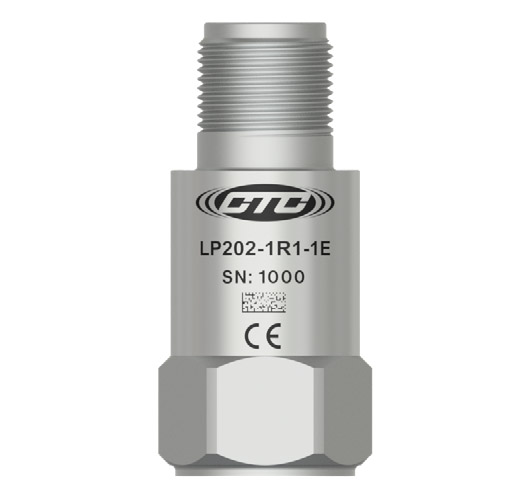

LP200

Velocity output

Top Exit
Top Exit
Data Sheet
LP200

Velocity output

Side Exit
Side Exit
Data Sheet

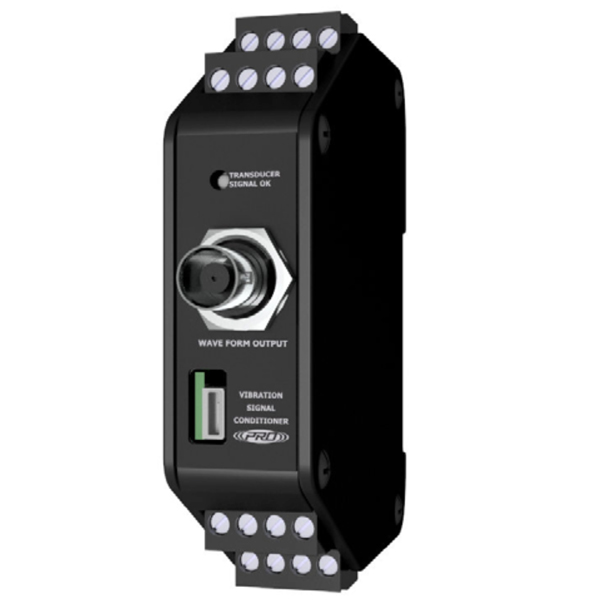

SC300 Series Field Configurable Signal Conditioner

SC300 Series Field Configurable Signal Conditioner

The SC300 signal conditioners are a powerful yet flexible tool for continuously monitoring critical equipment.

Two independent outputs, configurable to either 0-20 mA, 4-20 mA, 0-5V, or 0-10V; each with its own configurable scaling in reference to the input sensor

Ultrasound frequencies supported up to 40 kHz

Field configurable via external USB port to PC with free CTC configuration software

Data Sheet

Get in touch with an expert to request a demo, request a quote, or ask about our starter kits.

[email protected]

Talk to one of our experts in this field
1-508-851-2456
